ASUS B760M-AYW Wifi DDR5
Sku: B760M-AYW-WIFI
Availability: In Stock
Brand:
Categories: motherboard
₹0

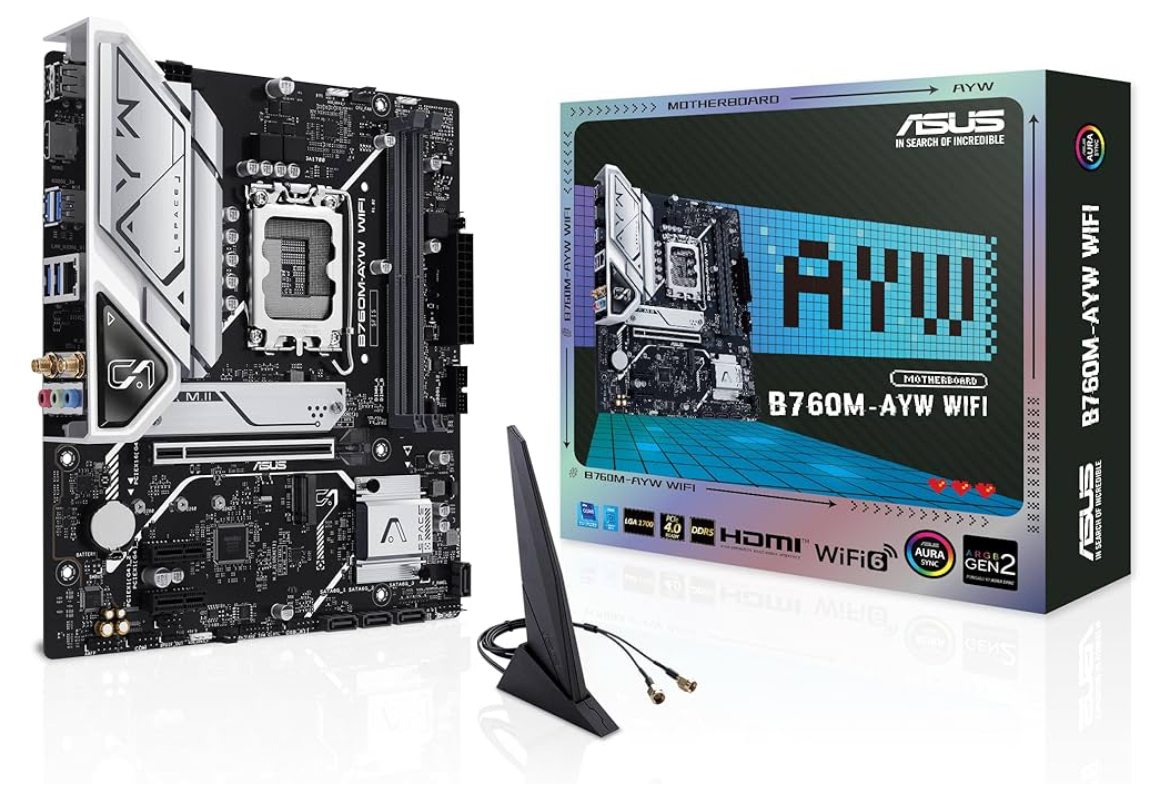

Micro-ATX motherboard with Intel B760 chipset, supporting DDR5 memory, PCIe 4.0, dual M.2 slots, WiFi 6, and Realtek 2.5Gb Ethernet.
Description:
The ASUS B760M-AYW WIFI DDR5 is a feature-rich micro-ATX motherboard designed to harness the full potential of Intel's 12th, 13th, and 14th Gen Core processors. With support for DDR5 memory, dual PCIe 4.0 M.2 slots, and Wi-Fi 6 connectivity, it offers a robust platform for gaming and productivity. The motherboard's comprehensive cooling solutions, including VRM and M.2 heatsinks, ensure stable performance under load. Additionally, ASUS-exclusive features like Aura Sync RGB lighting and AI-powered software utilities provide customization and intelligent system optimization.
Technical Specifications:
Specification | Details |
|---|---|
Form Factor | Micro-ATX (24.4 cm x 21.1 cm) |
CPU Socket | LGA 1700 |
Chipset | Intel® B760 |
Supported CPUs | 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® |
Memory Support | 2 x DDR5 DIMM slots, up to 96GB, speeds up to 8000 MT/s (OC) |
Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
Storage Options | 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports |
Graphics Outputs | 1 x HDMI™ 2.1 (supports 4K@60Hz) |
Networking | Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.3 |
USB Ports (Rear I/O) | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
USB Ports (Internal Headers) | 1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB 2.0 header (supports 2 ports) |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Cooling Features | VRM heatsink, M.2 heatsink, hybrid fan headers, Fan Xpert 2+ |
RGB Lighting | Aura Sync support with 3 x Addressable Gen 2 headers |
Power Connectors | 1 x 24-pin Main Power, 1 x 8-pin +12V Power |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Operating System Support | Windows® 11, Windows® 10 64-bit |
Warranty: 3 years
